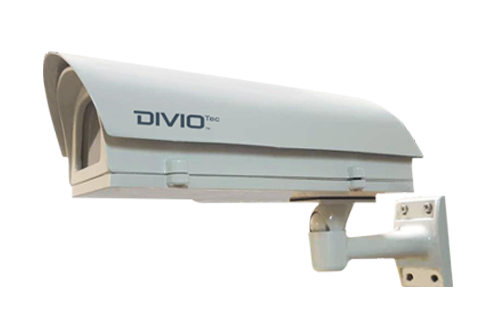

H.265 3MP at 30fps, SpeedCatch™ SoC, Up to 150M (492ft) Car-plate Captured Distance, 25-135mm Lens, Speed of Vehicles 0-250km/h, IP66 Weatherproof, License Plate Capture Network Camera
H.265 3MP at 30fps, SpeedCatch™ SoC, Up to 150M (492ft) Car-plate Captured Distance, 25-135mm Lens, Speed of Vehicles 0-250km/h, IP66 Weatherproof, License Plate Capture Network Camera
|
Sensor |
|
|---|---|
|
Image Sensor |
1/1.8” 3MP Sony progressive sensor |
|
Effective Pixels |
2048 (H) x 1536 (V) |
|
Minimum Illumination |
Color: 0.01 lux.; B/W: 0.0009 lux. @ F1.8 |
|
LPR |
|
|
License Plate |
Reflective , Non-reflective |
|
License Plate Capture Range |
30M~150M (96 ~492ft) |
|
Speed of the Vehicle |
0~250km/h or 0-155 mile/h *The best testing result is under sufficient lighting condition |
|
Build-in Installation Aids |
15x digital zoom |
|
Lens |
|
|
Lens Type |
Vari-focal |
|
Focal Length |
25mm-135mm, F1.8 |
|
Iris |
P-Iris |
|
Field of View |
20.7°-3.9°(D)/ 16.2°-3.1°(H)/ 12.0°-2.4°(V) |
|
Built-in IR Illuminator |
|
|
Illumination Distance |
150M (492ft) |
|
LED Type |
IR LEDs / Strobe IR LEDs (optional) / White LEDs (optional) / Strobe White LEDs (optional) |
|
Image Setting |
|
|
Digital Zoom |
1-15x, Arrow Key |
|
Image Adjustment |
Brightness (Value: 0-100), Contrast (Value: 0-100), Saturation (Value: 0-100), Sharpness(Value: 0-255), Hue |
|
Digital Image Stabilization (DIS) |
Yes |
|
Orientation |
Mirror(Flip left-to-right/ Flip top-to-bottom)/ Corridor |
|
ROI (Region of Interest) |
Stream 1/ Stream 2; 5 Zones , Low / Medium /High |
|
Privacy Mask |
5 Masks |
|
OSD |
Text Position: Top Left/ Top Right/ Bottom Left/ Bottom Right |
|
Exposure |
Auto/ Locked |
|
Shutter Speed |
1/7-1/20000 sec. |
|
Gain Control |
OFF/ Low/ Medium/ High/ User Define(Value Adjustment Range 1-512) |
|
BLC |
Disable / Enable |
|
Wide Dynamic Range |
Multi shutter WDR 140dB; Off/ Auto |
|
AWB (Auto White Balance) |
Auto/ OFF (RG Gain 0.00-10.00, BG Gain 0.00-10.00 ) |
|
Defog |
Advanced/Overview Mode: Low/ Medium/ High ; LPR Mode: Value Adjustment Range 0-255 |
|
Noise Reduction(Noise Filter) |
On/Off (Level 1 - 11) |
|
Day/Night |
Auto/ Forced Day/ Force Night/ Schedule/ Light Sensor (switch on adjustable lux threshold) |
|
Image Profile Control |
Force Day/ Force Night/ Auto(Follow Day Night Control) |
|
ICR (IR Cut) Control |
Force Day/ Force Night/ Auto(Follow Day Night Control) |
|
IR LED Control |
Auto/ Forced Day/ Force Night/ Schedule/ Digital Light Sensor (switch on adjustable lux threshold) Wide IR: OFF/ Auto/ High/ Medium/ Low |
|
External Lighting Control |
On/ OFF |
|
Video |
|
|
Video Streaming |
Triple Streaming |
|
Video Compression |
H.265/ H.264/ M-JPGE |
|
Video Resolution/Frame Rate |
3MP (2048 x 1532) @30 fps, FHD 1080P (1920 x 1080) @30fps |
|
Video Quality |
H.265 / H.264: CBR/ CVBR ; MJPEG: Low/ Medium/ High |
|
Bit Rate |
64-8000 kbit/s |
|
Frame Rate |
30fps max |
|
GOP Length |
1-120 level |
|
Smart Streaming |
Smart ROI, FPS, GOP |
|
Audio |
|
|
Audio Streaming |
support Full-Duplex; Volume: Low/ Mid/ High |
|
Audio Compression |
G.711 8KHZ/ 16bits; U-Law/ A-Law |
|
Event Triggers & Actions |
|
|
Alarm Detection |
On/ Off/ Schedule |
|
Motion Detection |
On/ Off/ Schedule, 5 Zones, Sensitivity: range 1-100 |
|
Tampering Alarm |
On/ Off/ Schedule, Sensitivity: Low/ Medium/ High |
|
Object/ Intrusion Detection |
On/ Off/ Schedule |
|
Event Trigger |
Alarm Detection, Motion Detection, Tampering Alarm, Object Detection, Intrusion Detection |
|
Event Actions |
Save Video/Snapshot to SD card (5 seconds pre-recording, 100 seconds post-recording, AVI & JPEG format) |
|
Network |
|
|
Interface |
10/100/1000 Mbps Ethernet, RJ-45 |
|
Protocol |
TCP/IP, UDP, RTP, RTSP, RTMP, FTP, SNMP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, ONVIF, IPv4/v6, HTTP, |
|
Security |
HTTP encryption/Multi-level user management (15 users)/IP address filtering |
|
Connectivity |
ONVIF Profile S, G, Q, T |
|
DDNS Settings |
Support DynDNS/NO-IP/Two-DNS server |
|
Multicast Function |
Yes |
|
Browser |
Internet Explorer, Chrome, Firefox, Safari |
|
General |
|
|
Audio I/O |
3.5 mm phone jack x1; Line-in, Line-out |
|
Digital I/O |
Alarm-in x 2, Alarm-out x 2 |
|
Weatherproof |
IP66 |
|
Operating Temperature |
-100C to 500C (140F to 1220F) |
|
Humidity |
90% RH (No Condensation) |
|
Power Source |
PoE (IEEE 802.3af/at), DC 12V/AC 24V terminal block |
|
Power consumption |
Maximum 10W |
|
Dimension |
350mm (D) x 110mm (W) x 80mm (H) |
|
Application |
SDK available for application development |
|
Micro SD |
Micro SDHC support up to 128GB |
|
Weight |
4kg |
|
Certification |
CE/FCC |
|
Ordering Information |
TBR925 |
