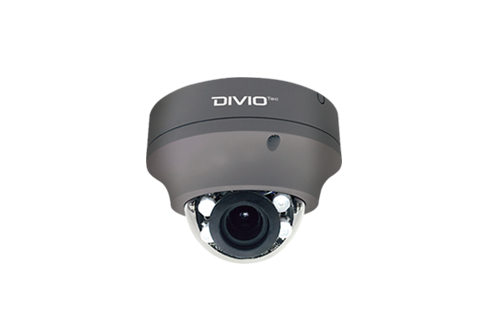

NDR555PA Dome Camera

H.265, 5MP real-time, P-Iris 2.7-15mm Motorized Lens, 35M(114ft) IR Distance, Smart IR+, ICR D/N, Ultra Low Light, SDS Plus, IP66 Weatherproof, IK10 Vandal Resistance, Video Analytics On Cam

  • 1/2.8" 5MP Sony CMOS Progressive Sensor
  • Support 5MP/3MP@ 30 fps
  • P-Iris 2.7– 15mm, Motorized Lens, F1.6
  • Support full-color low light performance
  • IR Illuminator: 35M (114ft) IR Distance, Smart IR+
  • Smart Filtering Function: Removable IR-cut Filter for Day and Night
  • Multi Shutter WDR 140dB
  • H.265/H.264/M-JPEG Video Compression
  • Advanced Video Analytics: Line Crossing, Loitering Detection, Camera Tampering, Intrusion Detection, People/Vehicle Counting,Object Left/Removed
  • SDS (Smart Dynamic Streaming) Plus: Smart ROI, FPS, GOP
  • Support Defog Technology
  • Support micro SD Card Slot, Alarm-in/-out, Audio-in/-out
  • Support PoE/DC12V Power input
  • IP66 Weatherproof, IK10 Vandal Resistance, 3-Axis Rotation
  • Operating Temperature from -20oC to 55oC/-4oF to 131oF
  • ONVIF Profile S, G, Q, T

Sensor

Image Sensor

1/2.8” 5MP Sony STARVIS CMOS Progressive Sensor

Effective Pixels

2592(H)x1944 (V)

Minimum Illumination

Color: 0.006 Lux; B/W: 0.0009 Lux (0 Lux with IR illumination ON) @ F1.6

Lens

Lens Type

Motorized

Focal Length

2.7-15mm, F1.6

View Angle

28°-108°(H)/ 16°-57°(V)/ 33°-130°(D)

Angle Adjustment

Pan: 0° ~ 355°/ Tilt: 0° ~ 60° / Rotate: +100° ~ -100°

Iris Control

P-Iris

IR

IR illuminator

Up to 35M (114ft), 850nm Wavelength

IR Control

Smart IR+

ImageSetting

Shutter Speed

Auto/Manual (1/7~1/20000)

WDR

Multi Shutter WDR 140 dB ; Auto / Manual Adjustable 10 Level

Day/ Night

Auto/Day/Night /Schedule

ICR Day/ Night

Auto/ Force Day/ Force Night

Gain Control

Off /Low /Medium /High /User Define 1-512

Auto Exposure

Auto /50Hz /60Hz /Lock 0-255 Level

White Balance

Auto/OFF

Backlight Compensation

Yes

Orientation

Mirror/ Flip / Corridor

Privacy Mask

5 Areas

OSD (Overlay)

Date/Time, Camera Name, Customer Text

Defog

Off /Low /Medium /High

Noise Reduction

Off/1-11 Level/Auto

Picture Adjustment

Brightness, Contrast, Saturation, Sharpness, Hue Adjust

ROI (Region Of Interest)

5 Zones , 3 Level: Low /Medium /High

Image Profile Setting

2 Profiles: Day & Night : Auto Switch /Force Day/Force Night

Video

Video Compression

H.265 / H.264 / M-JPEG

Video Streaming

Triple streaming

Video Resolution/Frame Rate

2592x1944@30FPS/2048x1536@30FPS/Full HD 1080P(1920 X 1080)@60FPS/HD 720P(1280 x 720)@30FPS/ D1- PAL (720x576)@30FPS/ D1-NTSC (720x480)@30FPS/VGA (640x480)@30FPS/640x 360@30FPS/QVGA (320x240)@30FPS

SDS (Smart Dynamic Streaming)

Smart ROI, FPS, GOP

Bit Rate

64K-8000K

Video Analytics Behaviors

Advanced

Intrusion Detection (Line/Zone; by People/ by Vehicle/ all Object)
Object Counting (Line/Zone; by People/ by Vehicle/ all Object)
Line Crossing (by People/ by Vehicle/ all Object; Direction Setting: Left/ Right) Loitering Detection (by Second)
Object Left / Object Removed

Essential

Object Counting (Line/Zone)
Object Intrusion Detection (Line/Zone)

EventManagement

Event Trigger

Motion Detection; Alarm-In/-out; Video Analytics Behaviors

Event Actions

File upload via FTP, HTTP, Network Storage and email
Notification via email, HTTP, TCP
Video recording to SD card, FTP
Alarm output port

Alarm I/O Detection

On/ Off/ Schedule

Motion Detection

On/ Off/ Schedule; Sensitivity: 0-100; Zone: 1-5

Tampering Alarm

On/ Off; Trigger by Light Changes; Sensitivity: 0-100

Network

Interface

10/100 Mbps Ethernet, RJ-45

Protocol

IEEE802.1x, EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP, DDNS, DHCP, Firewall, FTP, GB28181, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RTP, RTSP, RTMP, SSL, SSH, SNMP, SNMP V2c, SNMP V3, SMTP, TCP/IP, UDP, UPnP, Bonjour, ARP, TLS

Security

User account and password protection, HTTPS, IP Filter, Digest Authentication, TLS1.2 only, Stream encryption,
AES-128/256, SSH/ Telnet closed, PCIDSS compliance

User

12 user account/ 2 level: admins/ views

Connectivity

ONVIF Profile S, G, Q, T

Browser

Internet Explorer, Google Chrome, Mozilla Firefox

General

Operating Temperature

-40oC to 60oC/-40o F to 140o F

Humidity

10% ~ 90%, No Condensation

Weatherproof

IP66

Vandal proof

IK10

Dimension

141 x 103.5 mm (5.5 x 4.1 in)

Weight

950g

Alarm I/O

Alarm-In/-out (terminal block)

Audio

Two-way, Line-in/Line-out (phone jack), G.711 PCM 8KHz

Power Input

PoE (IEEE 802.3af)/DC12V: 7W max.

Micro SD

Compliance with SDHC (up to 32GB)/SDXC (up to 2TB) standard

Reset Button

Yes

Certification

CE/FCC Class A

Application

SDK available for application development

Order Information

NDR555PA
