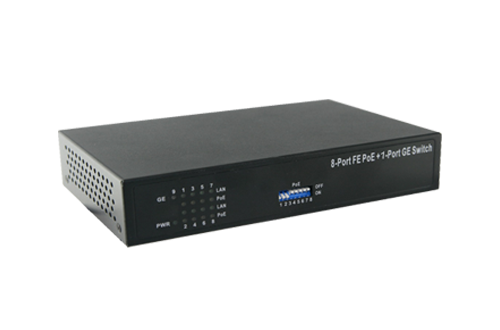

APE303L PoE Switch

8-port PoE Switch, 802.3 at/af compliant, On/Off DIP Control, Power Protection (OVP/OCP/OTP), Power Output 90W

  • 8 x 10/100M Auto-MDIX ports + 1 x Gigabit port
  • Power output 90W max., IEEE802.3 af/at compliant, 30W max. per port
  • 8 x On/Off dip control for each PoE port
  • Power protection: OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection)

PoE Injector: APE303L

Ethernet Port

8 x 10/100 Mbps Auto-MDIX ports + 1 x Gigabit port

Power Input

100-240VAC, 50~60Hz

Power Output

90W max.; 15.4W (IEEE802.3af) max. or 30W (IEEE 802.3at) max. per port

Standard

IEEE 802.3 10 BaseT
IEEE 802.3u 100 BaseTX
IEEE 802.3x Flow Control
IEEE 802.3at/af compliant

Buffer Memory

512K bits

Number of MAC Address

2000

Operating Temperature

00C to 400C / 320F to 1040F

Dimensions

178 × 118 × 40 mm (L x W x H)

Box Weight

1.6 kg

Certificate

FCC / CE / safety standard EN 60950:2006

Ordering information

APE303L-US: with US power plug
APE303L-EU: with EU power plug
APE303L-UK: with UK power plug
APE303L-AU: with AU power plug
