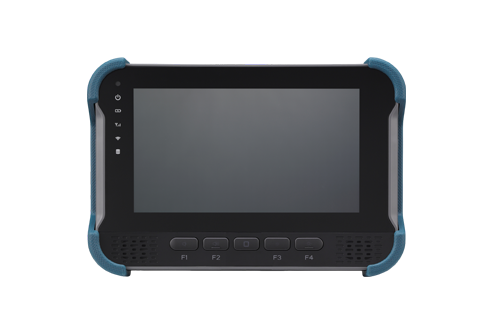

8-inch TFT LCD panel with LED backlight
1280 x 720 pixels (HD)
Brightness: 1000 cd/m² (typical)
Viewing angle: 170° (H)/170°(V)
Contrast ratio: 1000:1(typical)

Projected capacitive
Anti-glare coating surface
Transmission rate: 80 ± 3%

NXP i.MX 8M Quad processor with1.3 GHz frequency
Quad Arm® Cortex®-A53core

Onboard LPDDR4 2400MHz SDRAM 4GB

1 x eMMC 32GB (BOM optional 64GB)
1 x Micro SDXC Slot

1 x M.2 2230 Key E socket (SDIO 3.0, PCIe2.0, UART)
1 x M.2 3042/3050/3052 Key B socket (USB 3.0) for LTE/5G NR modulewith 1 x external Micro-SIM slot, with 1 x internal Micro-SIM slot

1 xDefaultu-bloxNEO-M9NGNSS for GPS/Glonass/QZSS/Galileo/Beidou
Optional M8U/M8L modules with deadreckoning available
G Sensor andgyro scope

1-port LAN, 10/100/1000 Mbps

TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)

Volume control keys (+/-) with LED
Brightness control keys (+/-) with LED
F1 ~ F4 programmable function keys with LED
1 x Shift key with LED
Light sensor
5 x LED indicators (power, battery, WWAN, WLAN, storage)
2 x Built-in 2W speakers
1 xMic

Left Side
- 1 x System reset button w/ cover
- 1 x MicroSD slot w/ cover
- 1 x Micro-SIM slot w/ cover
 Right Side
-  1 x Power button
-  1 x USB 2.0 type A connector w/ cover
-  1 x Mic-in (mono), 1 x Line-out (mono) w/ cover

1 x Full RS232 (COM, w/ 5VDC, 12VDC)
1 x Power connector, M12 A-coded 5-pin
1 x 10/100/1000 Mbps LAN, M12 A-coded 8-pin
1 x M12 A-coded 8 pin for 2 x USB 2.0
1 x M12 (MULTI PORT1, A-coded 12-pin)
-  2 xGPI
-  2 xGPO
-  1 x Isolated CANBus 2.0B
-  PWM (speed)+Direction+GND
1 x M12 (MULTI PORT2, A-coded 12-pin)
-  1 x RS232 (Tx, Rx)
-  1 x RS232 (Tx, Rx)/RS422/RS485
-  4 x Composite video input
2 x SMA connector for WWAN
3 x SMA connector for WLAN
1 x SMA connector for Bluetooth
1 x SMA connector for GNSS

Cooling system: fanless
Enclosure: plastic
IK Rating: IK08 (housing and touch screen)
Mounting: VESA75
Ingress protection: complete IP65
Dimension: 250x179x67.5 mm
Weight: 2.4kg

9V ~ 60V DC in
Back-up battery for approx. 20 min of operation (optional)
Reverse protection/over voltage protection/under voltage protection
Ignition on/off control & programmable on/off delay timing
Wake up by SMS, RTC and ignition

13.56-MHz RFID/contactless standardprotocols
Compatibles with all major global secured baseband ISO standards
includingISO14443TypeA,MIFAREclassiccards,andSmartlabel ISO15693

Operating temperatures: Ambient with air -40°C to 70°C, ambient with air and without battery
Storage temperatures: -40°C to 80°C
Relative humidity: 10% to 90% (non-condensing)
Vibration (random)
-   2g@5~500 Hz (in operation)
Vibration
-   Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
-   Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
-   Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi- trailers = 40g
-   Crashhazard:MIL-STD-810G,Method516.6, ProcedureV, ground equipment = 75g

Linux
Android (by request)

CE/FCC classB/E13/IK08

NRM 103-PC1 (P/N: 10VC0022000X0)
