Server Room NVR Platform

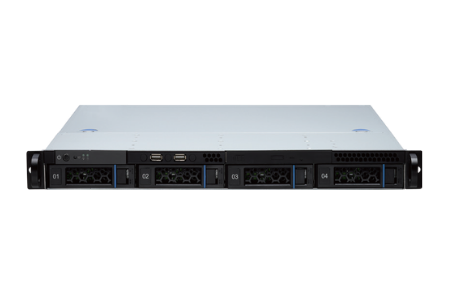

NRP57244 Workstation Network Video Recorder

The NVR NRP57244 features a 13th/14th Gen Intel® Core™ processor (up to 24 cores), supports 64GB DDR4 memory. It features 24-channel PoE (802.3af/at) to power IP cameras, and dual 2.5GbE LAN. Real-time 4K display via DP1.4/HDMI2.0b and Intel UHD Graphics 770. It offers 4 hot-swappable HDDs (H/W RAID 0/1/5/10-configurable), supports dual NVMe/M.2 SSDs.

  • System 1U Rackmount
  • 14th/13th Gen Intel® Core™ CPU
  • DDR4 up to 64GB
  • HDD 4Bays 3.5” (support H/W RAID 0,1,5,10)
  • 1 x NVME SSD, 1 x M.2 2242 SATA SSD
  • 4K Display DP1.4, HDMI2.0b*1
  • 2 X 2.5GbE Intel Ethernet
  • 24 X 10/100 PoE (240W max PSE)
  • Single PSU 600W
  • Operating temperature: 0°C ~ 55°C, storage: -20°C ~ 70°C

CPU

Intel® I9-13900E / I7-13700E / I5-13500E / I3-13100E

Memory

2 x DDR4 SO-DIMM, Non-ECC, up to 64GB

Platform Control Hub

Intel® Q670E

I/O Interface - Front

4 x Hot-swappable 3.5” HDD bays
Option 4 HDDs support in HW RAID 5,10
2 x USB 2.0 Type-A (Per port output Max 500mA)

I/O Interface - Rear

4 x USB 3.1 Gen1, Type-A (max 900mA per port)
1 x DP 1.4 (4K60)
1 x HDMI 2.0b (4K60)
2 x RJ45 LAN ports (2 x 2.5Gbps)
24 X 10/100 PoE (240W max PSE) Option 360W PSE

Storage

4 x Hot-swappable 3.5” HDDs up to 22 TB, supports hardware RAID 0,1,5,10
M.2 Key M 2280 (NVMe Gen4 support)
M.2 Key B 2242 (SATA3 support)

Power Input

Single PSU 600W
Redundant power 1+1 (optional)

Dimensions

482.45mm (W) x 43.5mm (H) x 576.63mm (D)

Environment

Operating temperature: 0°C ~ 55°C (with airflow)
Storage temperature: -20°C ~ 70°C
Relative humidity: 0% ~ 90% (non-condensing)

Certifications

CE approval
FCC Class A
Ordering Information

NRP57244
1U rack workstation NVR
NRP57244-R
1U rack workstation NVR, redundant power 1+1
