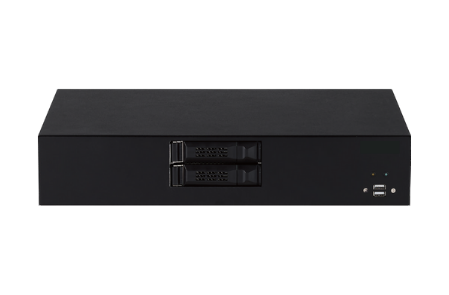

NRP6602 Desktop Network Video Recorder

The NVR NRP6602 features 13th/12th Gen Intel® Core™ processor (up to 16 cores), 64GB DDR4 memory, and Intel UHD Graphics 770 for 4K real-time display via DisplayPort and HDMI. It offers dual 3.5" HDDs (Supports RAID 0,1), NVMe/M.2 SSDs, and multiple I/O ports including 2.5GbE, USB 3.2. PCIe expansion for AI application or stream acceleration.


  • System 2U Desktop
  • 13th/12th Gen Intel® Core™ CPU
  • 2 x DDR4 up to 64GB
  • 2 x 3.5” Hot-swappable HDDs (support RAID 0,1)
  • 1 x NVME SSD, 1 x M.2 2242 SATA SSD
  • Display DP1.4, HDMI 2.0b x 1, HDMI 1.4 x 1
  • 2 x 2.5Gbps Intel Ethernet
  • 1 x PCIe by 16 expansion slots
  • Audio in/out, Mic
  • Single PSU 600W
  • Operating temperature: 0°C ~ 40°C, storage: -20°C ~ 70°C

CPU

 12th/13th Gen Intel® i9-13900E/ i7-12700E/ i5-12500E/ i3-12100E

Memory

2 x DDR4 SO-DIMM, non-ECC, up to 64GB, Supports OOB ECC in R680E

Platform Control Hub

Intel® Q670E (optional: R680E)

I/O Interface - Front

2 x Hot-swappable 3.5” HDD bays
2 x USB 2.0 Type-A (max output 500mA per port)

I/O Interface - Rear

4 x USB 3.1 Gen2, Type-A (max output 900mA per port)
1 x DP 1.4 (4K60)
1 x HDMI 2.0b (4K60)
1 x HDMI 1.4 (4K24)
1 x Audio port (Line in/Line out/MIC)
2 x RJ45 LAN ports (2 x 2.5Gbps)
1 x 4DI/2DO GPIO terminal block (optional)

Expansion Slot

 1 x PCIe by 16 slots (supports full x16 lanes; riser-compatible with either 1 x16 or 2 x8)

Storage

2 x Hot-swappable 3.5” HDDs, supports RAID 0,1
M.2 Key M 2280 (NVMe Gen4 support)
M.2 Key B 2242 (SATA3 support)

Power Input

Single PSU 600W

Dimensions

430mm (W) x 84mm (H) x 330mm (D)

Environment

Operating temperature: 0°C ~ 40°C (with airflow)
Storage temperature: -20°C ~ 70°C
Relative humidity: 0% ~ 90% (non-condensing)
Certifications

CE approval
FCC Class A
Ordering Information

NRP6602
2U desktop NVR with PCIe x16 support
