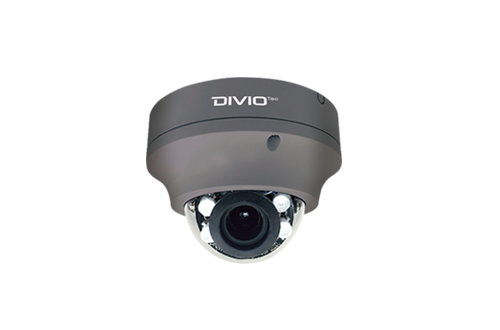

H.265 Full HD 1080P at 30 fps, Up to 35 M(114ft) IR Distance, 2.7-12mm Motorized Lens, Speed of Vehicles 0-120km/h (0-74 mile/h), IK10 Vandal Resistance, IP66 weatherproof, License Plate Capture Network Camera
H.265 Full HD 1080P at 30 fps, Up to 35 M(114ft) IR Distance, 2.7-12mm Motorized Lens, Speed of Vehicles 0-120km/h (0-74 mile/h), IK10 Vandal Resistance, IP66 weatherproof, License Plate Capture Network Camera
|
Sensor |
|
|---|---|
|
Image Sensor |
1/2.8” 2MP CMOS Progressive Sensor |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Minimum Illumination |
Color: 0.01 Lux; B/W: 0.0009 Lux @ F1.6 |
|
LPR |
|
|
License Plate |
Reflective |
|
License Plate Capture Range |
5~10M (16 ~32ft) |
|
Speed of the Vehicle |
0~120km/h or 0~75 mile/h *The best testing result is under sufficient lighting condition |
|
SmartCatch™ SoC |
LPR mode - High contrast image - Support reflective car plate - IR LED/ Car Speed adjustable |
|
Lens |
|
|
Lens Type |
Motorized Lens |
|
Focal Length |
2.7– 12mm, F1.6 |
|
Field of View |
32° -108° (H)/ 18° -57° (V)/ 37° -130° (D) |
| Iris |
P-Iris |
|
Built-in IR Illuminator |
|
|
Illumination Distance |
Up to 35M (141ft), 850nm Wavelength |
|
IR Control |
Smart IR+ |
|
Image Setting |
|
|
Optical Zoom |
Zoom Control: 1-200 level, Focus Control (Slider Control): Auto Focus, Micro Adjustment |
|
Image Adjustment |
Brightness (Value: 0-100), Contrast (Value: 0-100), Saturation (Value: 0-100), Sharpness(Value: 0-255), Hue |
|
Digital Image Stabilization (DIS) |
Yes |
|
Orientation |
Mirror(Flip left-to-right/ Flip top-to-bottom)/ Corridor |
|
ROI (Region of Interest) |
Stream 1/ Stream 2; 5 Zones , Low / Medium /High |
|
Privacy Mask |
5 Masks |
|
OSD |
Text Position: Top Left/ Top Right/ Bottom Left/ Bottom Right |
|
Exposure |
Auto/ Anti-Flicker 50Hz/ Anti-Flicker 60Hz/ Locked, Value Adjustment Range 0 - 255 |
|
Iris Control |
10%-100% |
|
Shutter Speed |
1/7-1/20000 sec. |
|
Gain Control |
OFF/ Low/ Medium/ High/ User Define(Value Adjustment Range 1-512) |
|
BLC |
Disable / Enable |
|
Wide Dynamic Range |
Multi shutter WDR 140dB; Off/ Auto/ Level 1-10 |
|
AWB (Auto White Balance) |
Auto/ OFF (RG Gain 0.00-10.00, BG Gain 0.00-10.00 ) |
|
Defog |
Advanced/Overview Mode: Low/ Medium/ High ; LPR Mode: Value Adjustment Range 0-255 |
|
Noise Reduction(Noise Filter) |
On/Off (Level 1 - 11) |
|
Day/Night |
Auto/ Forced Day/ Force Night/ Schedule |
|
Image Profile Control |
Force Day/ Force Night/ Auto(Follow Day Night Control) |
|
ICR (IR Cut) Control |
Force Day/ Force Night/ Auto(Follow Day Night Control) |
|
IR LED Control |
Auto/ Forced Day/ Force Night/ Schedule |
|
Image Profile Settings |
10 Profiles |
|
External Lighting Control |
On/ OFF |
|
LPR Mode Image Setting |
|
|
Max Car Speed (km/h) |
0-120 km |
|
Max Sens Up Gain |
0-512 level |
|
External Lighting Control |
ON/ OFF |
|
Defog |
0-255 level |
|
IR LED Intensity |
0-100 level |
|
Video |
|
|
Video Streaming |
Triple Streaming |
|
Video Compression |
H.265/ H.264/ M-JPGE |
|
Video Resolution/Frame Rate |
Full HD 1080P (1920 x 1080) @ 30fps, 720P (1280 x 720), VGA (640 x 480) @30fps, 640x360@ 30fps, QVGA(320 x 240) @ 30 fps |
|
Video Quality |
H.265 / H.264: CBR/ CVBR ; MJPEG: Low/ Medium/ High |
|
Bit Rate |
64-8000 kbit/s |
|
Frame Rate |
30fps max |
|
GOP Length |
1-120 level |
|
Smart Streaming |
Smart ROI, FPS, GOP |
|
Audio |
|
|
Audio Streaming |
support Full-Duplex; Volume: Low/ Mid/ High |
|
Audio Compression |
G.711 8KHZ/ 16bits; U-Law/ A-Law |
|
Event Triggers & Actions |
|
|
Alarm Detection |
On/ Off/ Schedule |
|
Motion Detection |
On/ Off/ Schedule, 5 Zones, Sensitivity: range 1-100 |
|
Tampering Alarm |
On/ Off/ Schedule, Sensitivity: Low/ Medium/ High |
|
Object/ Intrusion Detection |
On/ Off/ Schedule |
|
Event Trigger |
Alarm Detection, Motion Detection, Tampering Alarm, Object Detection, Intrusion Detection |
|
Event Actions |
Save Video/Snapshot to SD card (5 seconds pre-recording, 100 seconds post-recording, AVI & JPEG format) File upload stream to FTP Server, HTTP Network Shortage |
|
Network |
|
|
Interface |
10/100/1000 Mbps Ethernet, RJ-45 |
|
Protocol |
TCP/IP, UDP, RTP, RTSP, RTMP, FTP, SNMP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, ONVIF, IPv4/v6, HTTP, |
|
Security |
HTTP encryption/Multi-level user management (15 users)/IP address filtering |
|
Connectivity |
ONVIF Profile |
|
DDNS Settings |
Support DynDNS/NO-IP/Two-DNS server |
|
Multicast Function |
Yes |
|
Browser |
Internet Explorer, Chrome, Firefox, Safari |
|
General |
|
|
Audio I/O |
Alarm(terminal block line-in*1/-out*1) and Audio (terminal block line-in*1/-out*1) |
|
Weatherproof |
IP66 |
|
Vandal Resistant |
IK10 |
|
Operating Temperature |
-20oC to 55oC/-4oF to 131oF |
|
Humidity |
10% ~ 90%, No Condensation |
|
Power Source |
PoE (IEEE 802.3af) |
|
Power consumption |
7W max. |
|
Dimension |
141 x 103.5 mm (5.5 x 4.1 in) |
|
Weight |
950g |
|
Application |
SDK available for application development |
|
Micro SD |
Micro SDHC support up to 64GB |
|
Reset button |
Yes |
|
Certification |
CE/FCC Class A |
|
Ordering Information |
TDR951 |
